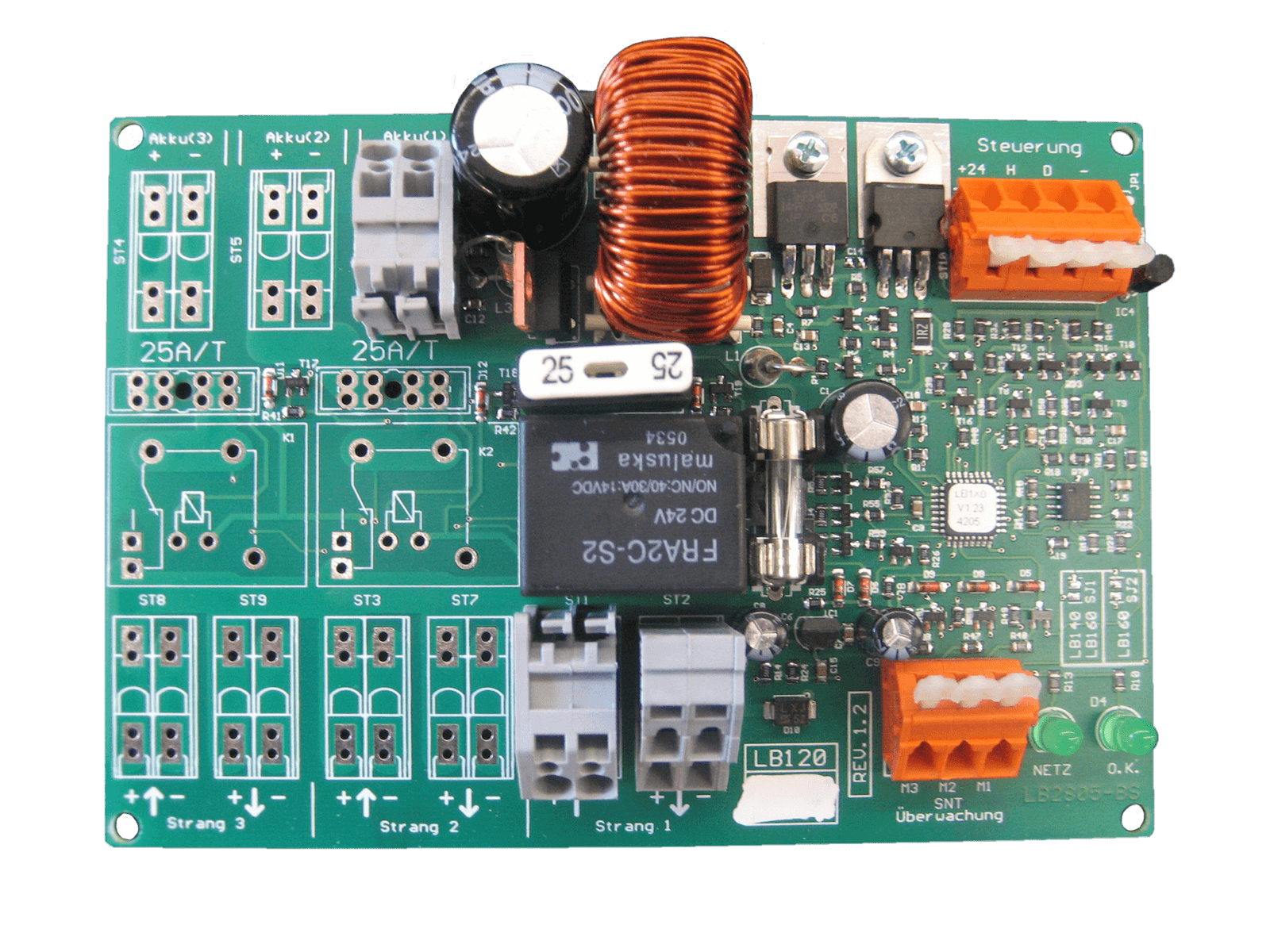

.png "Charging electronics type LB-120")
| Output voltage | 230 V AC |
Accessories for the modular control panel M-SHEV and M-VENT
In the article list you will find all accessories: loading boards, spare batteries and housing accessories for the modular control panels such as cable flange plate and AP-MOUNT sliding hook.
| Matchcode | Zubehör Modulzentrale |
| Product name | Accessories modular control unit |
| Features | SHEV VENT |
| Output voltage | 230 V AC |
| Part no. | Matchcode | |
|---|---|---|
| ST4 3344 | HR-820-MS | |

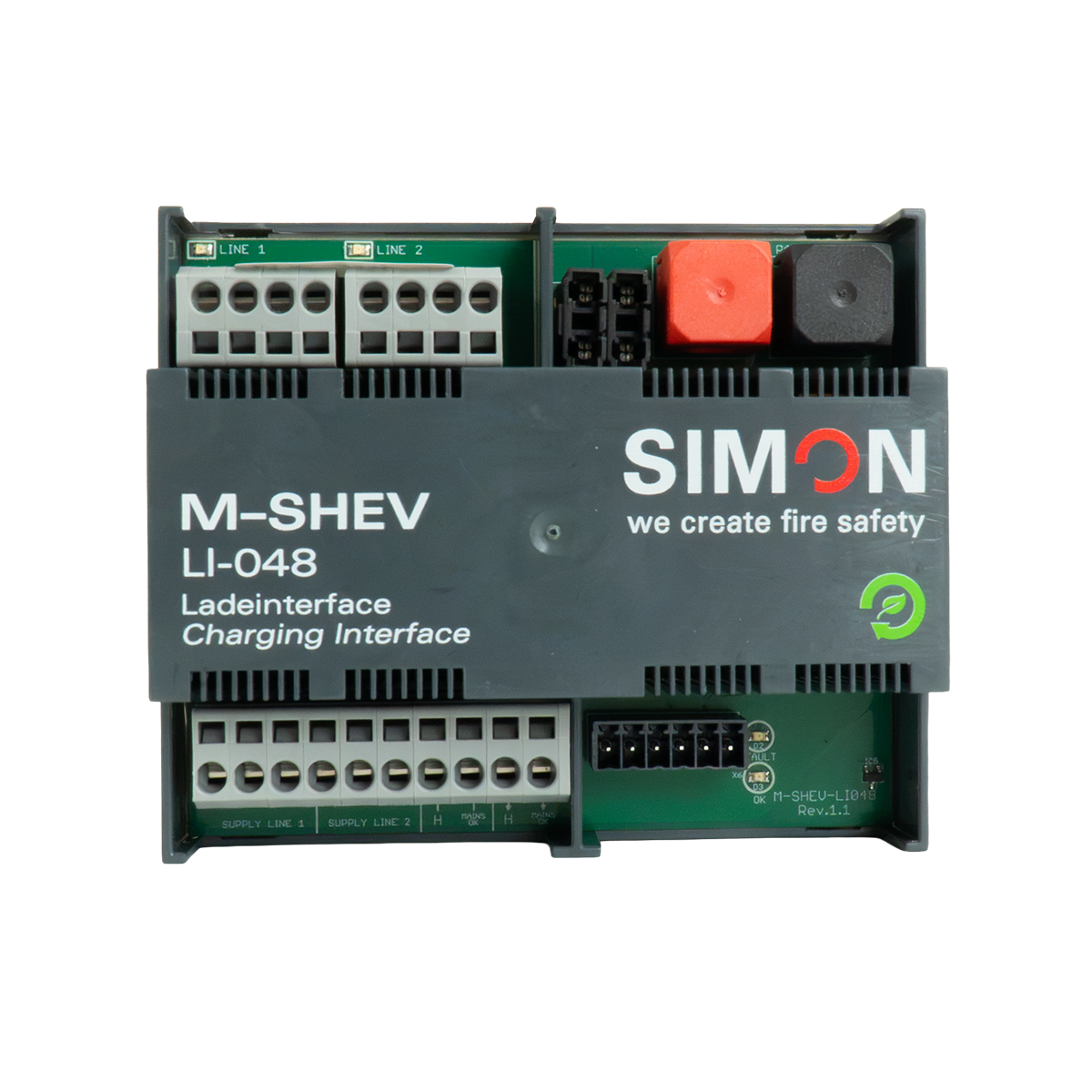

| ST4 3372 | LI-048-12 | |
| ST4 3373 | LI-048-24 | |
| ST4 3374 | LI-048-48 | |
| Part no. | Matchcode | |
|---|---|---|

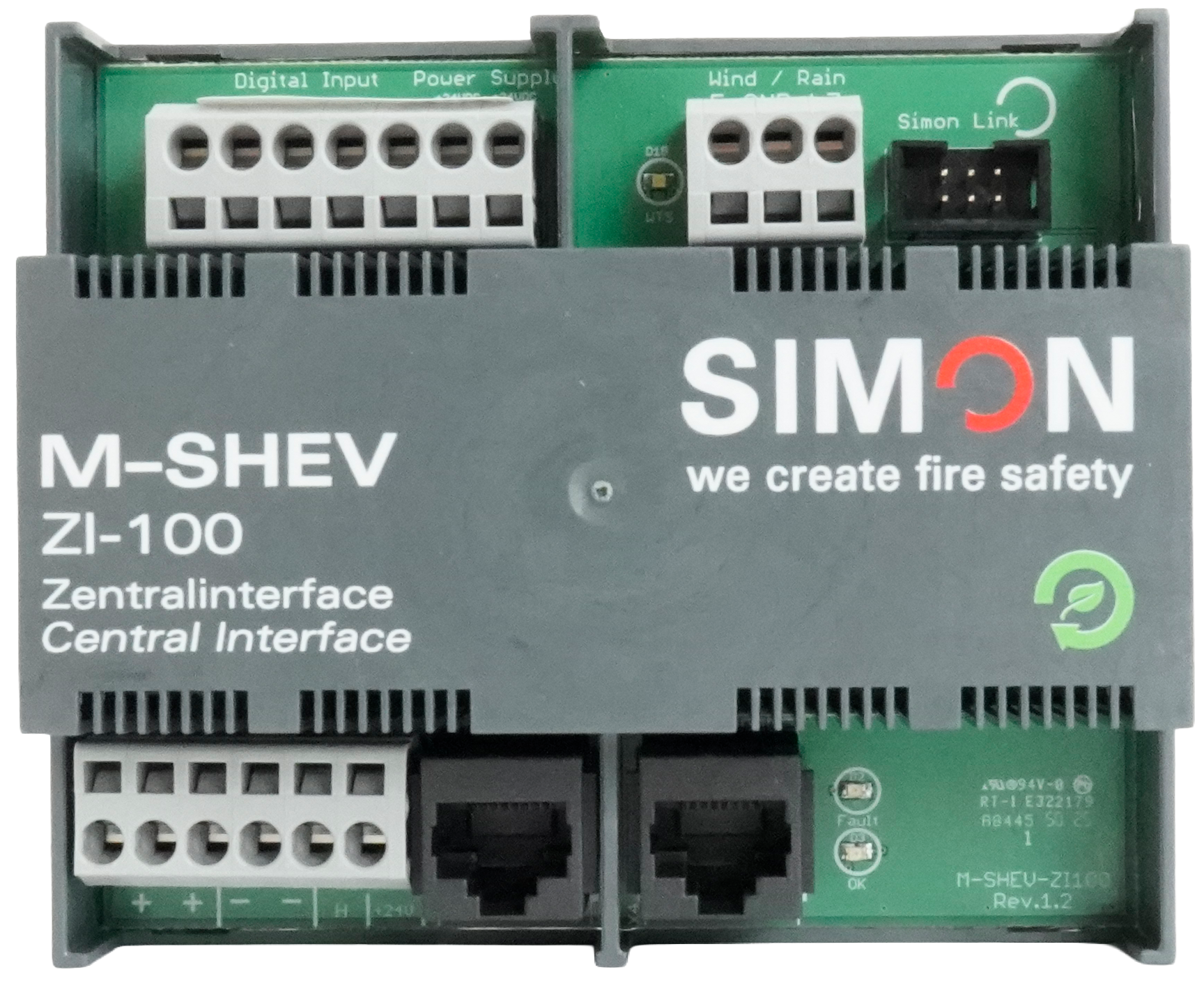

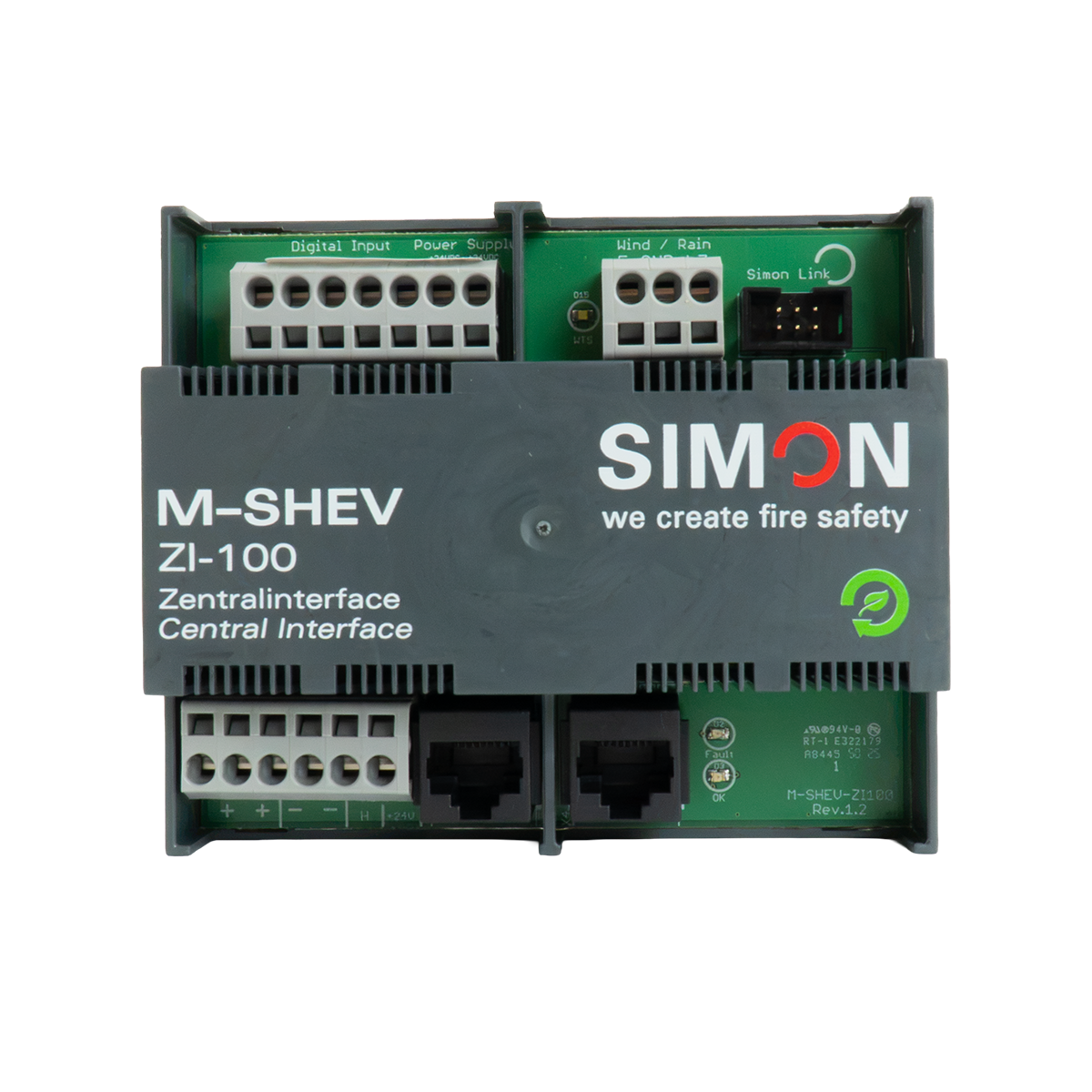

| ST4 3380 | ZI-100 | |

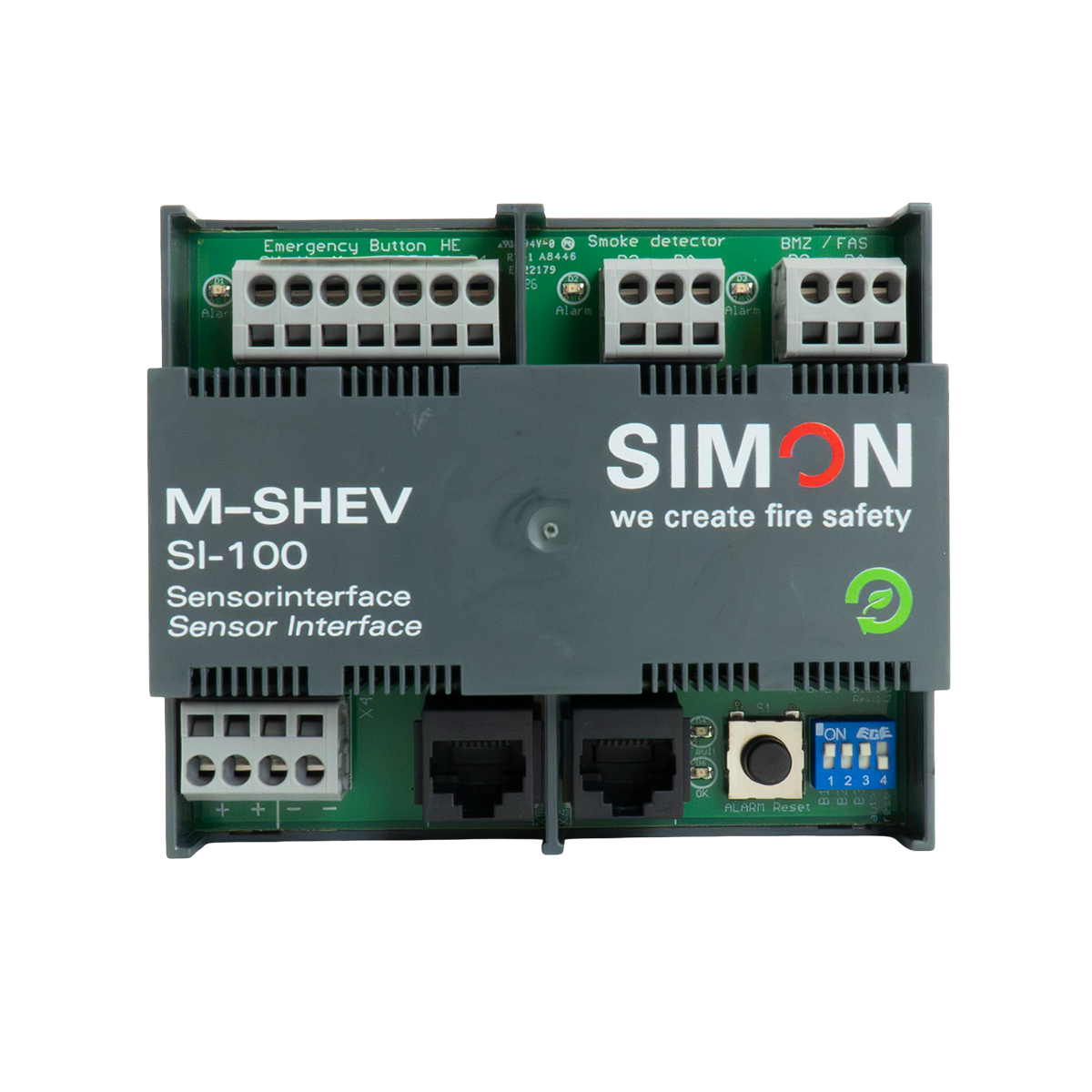

| ST4 3381 | SI-100 | |

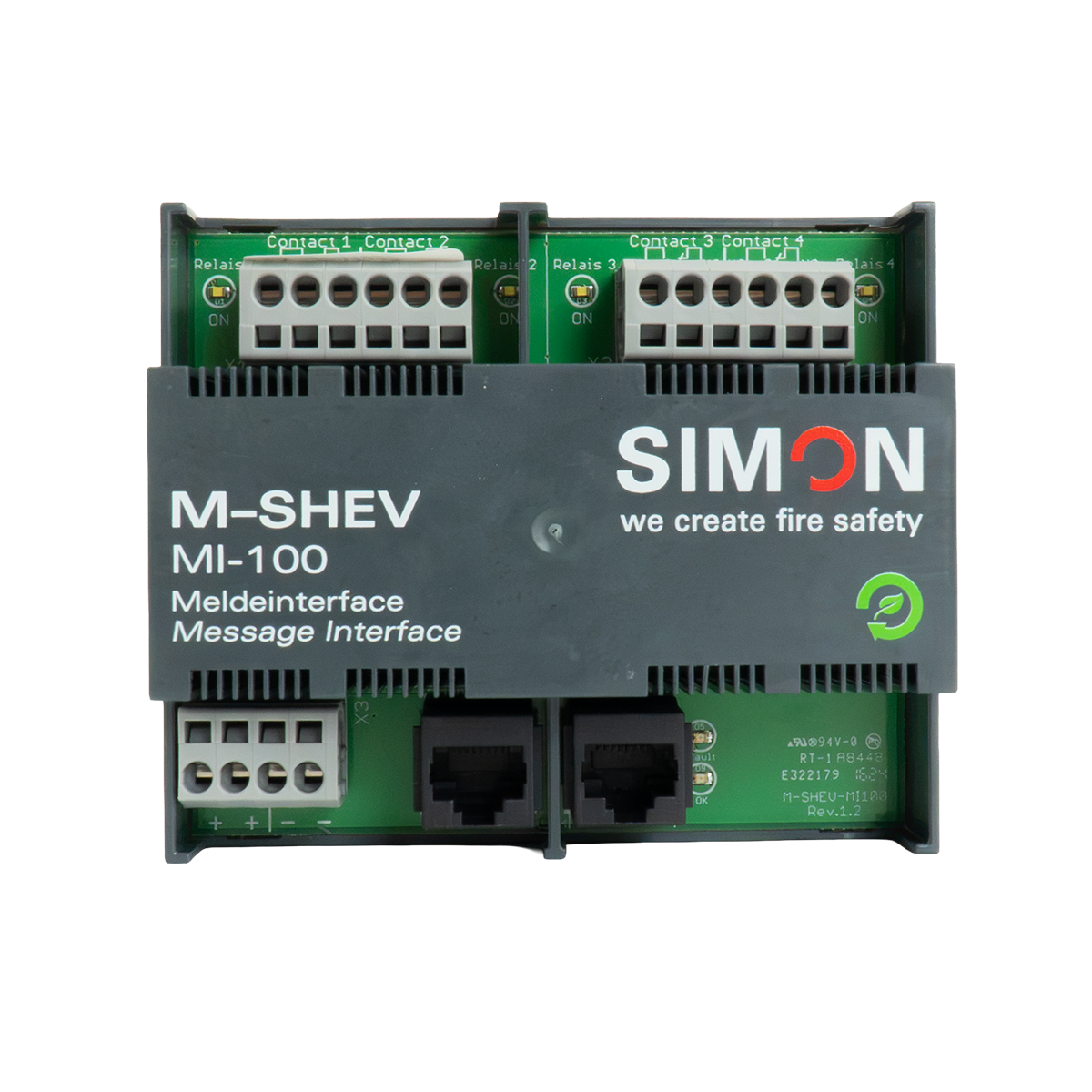

| ST4 3382 | MI-100 | |

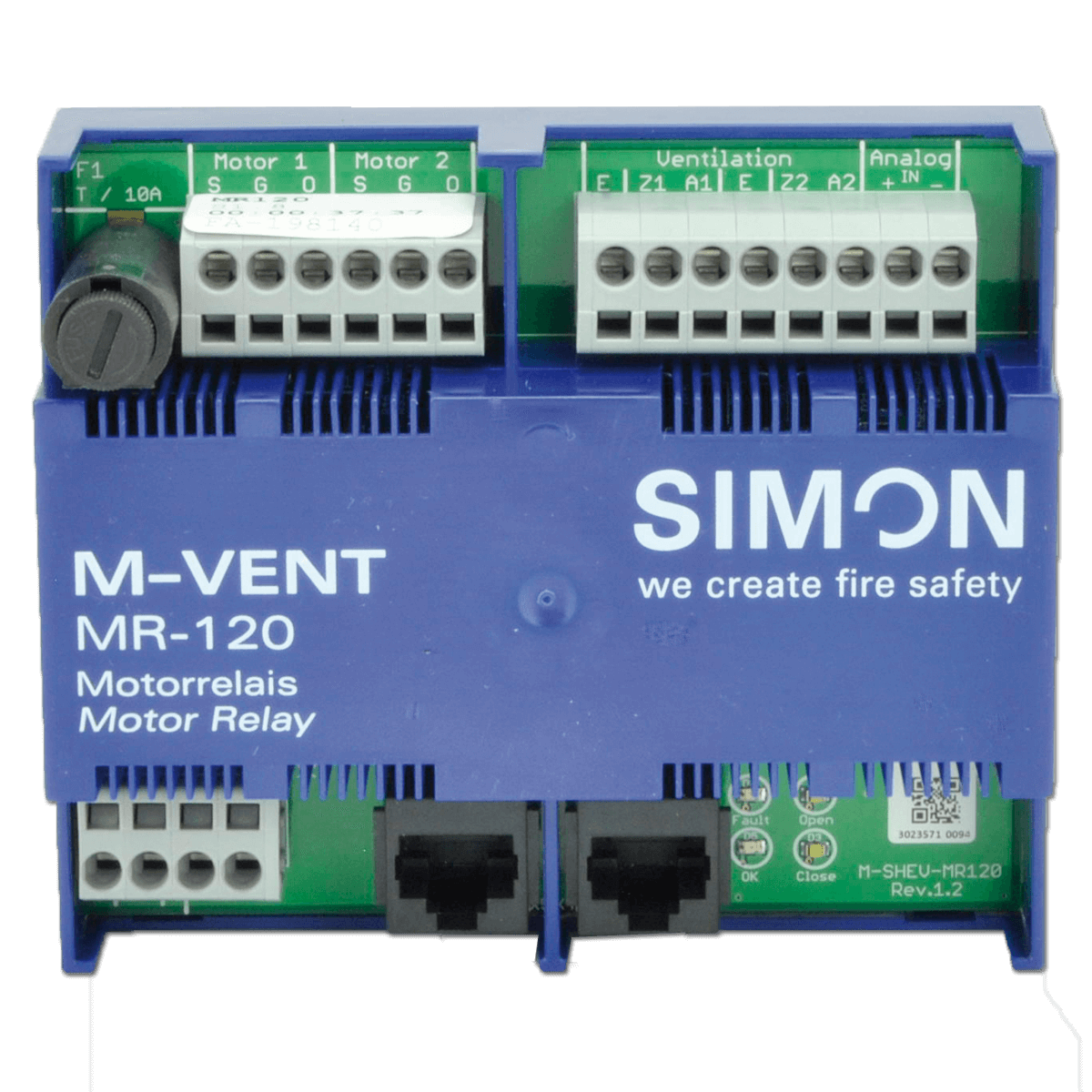

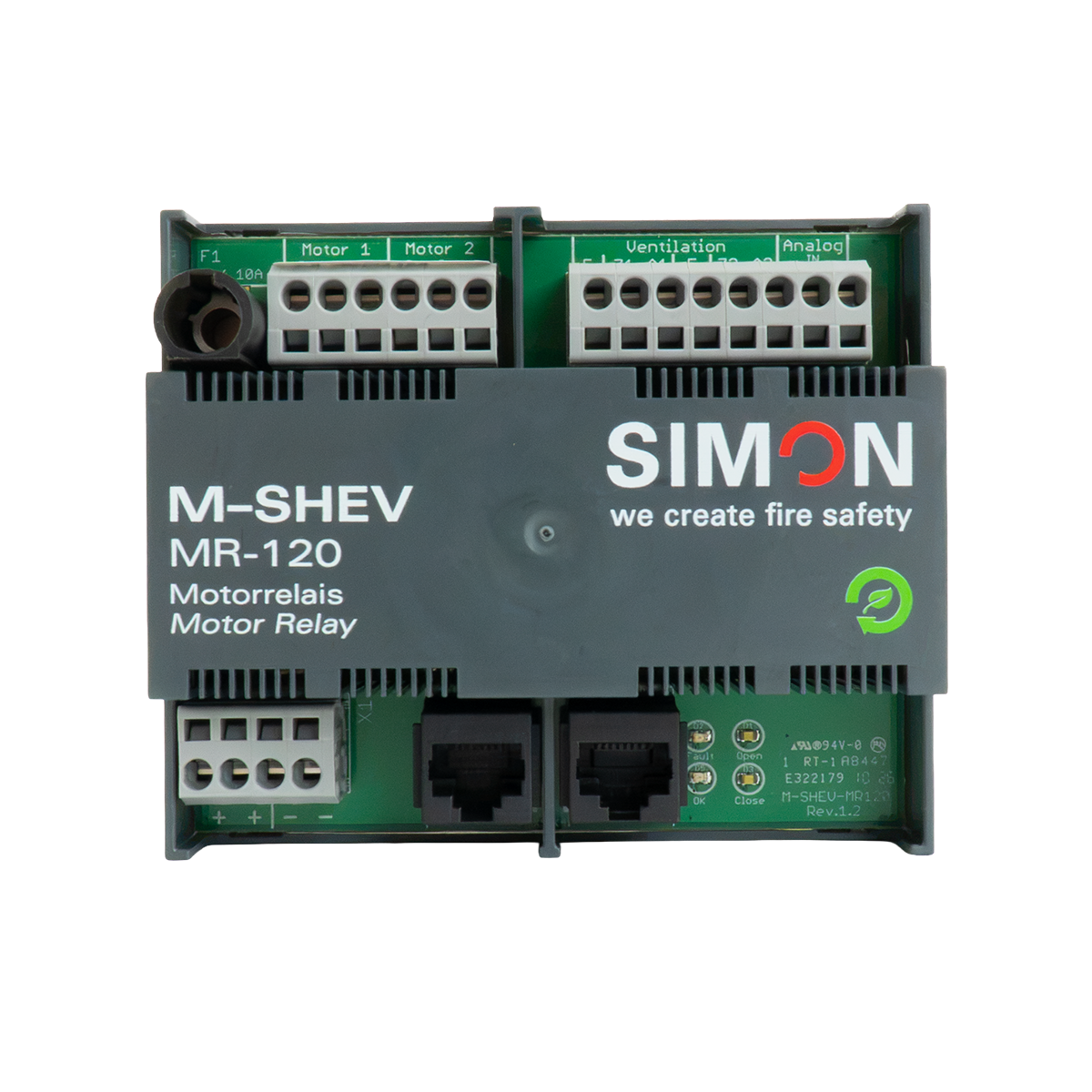

| ST4 3383 | MR-120 | |
| Part no. | Matchcode | |
|---|---|---|
| ST4 3385 | MI-100-MB | |

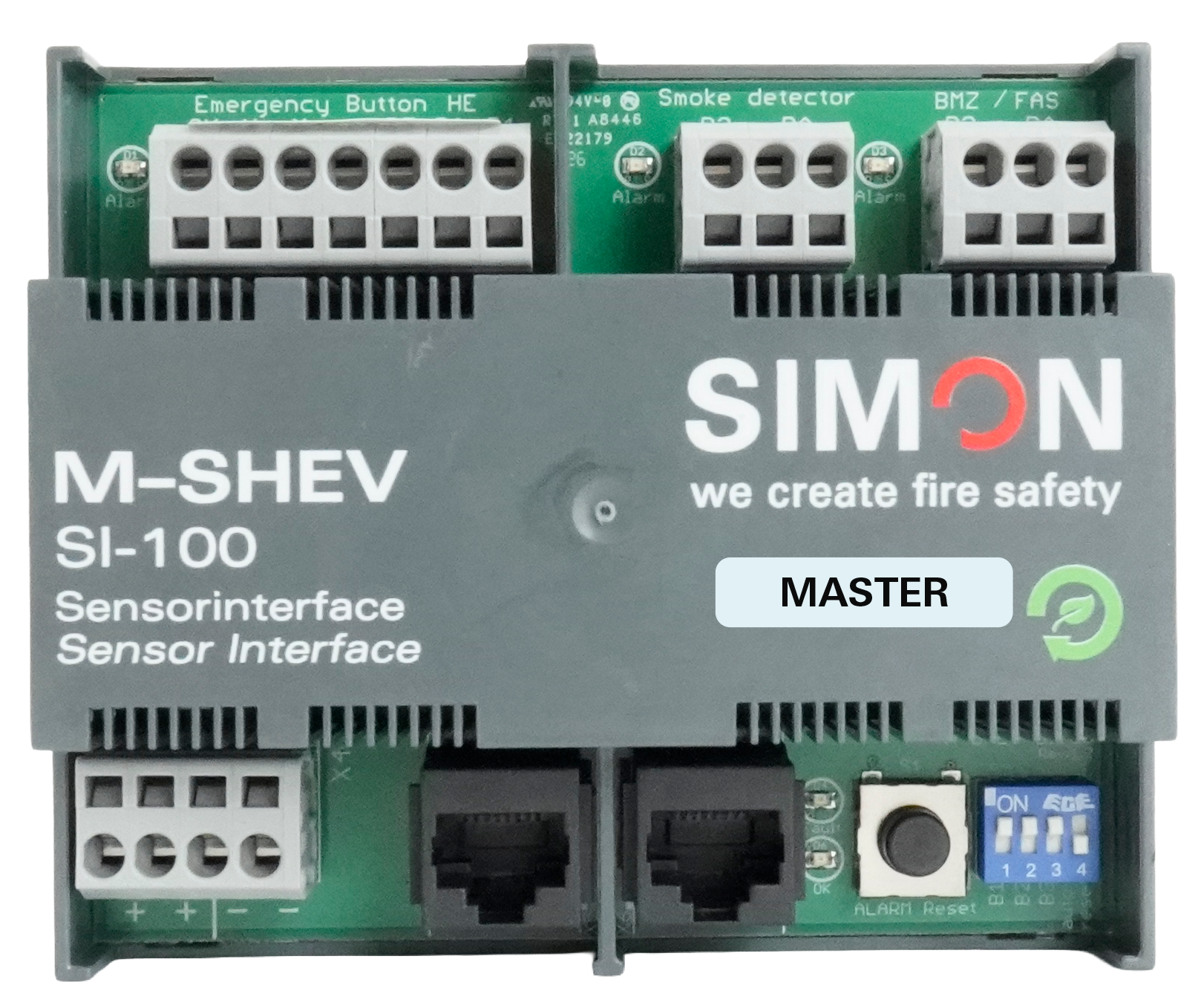

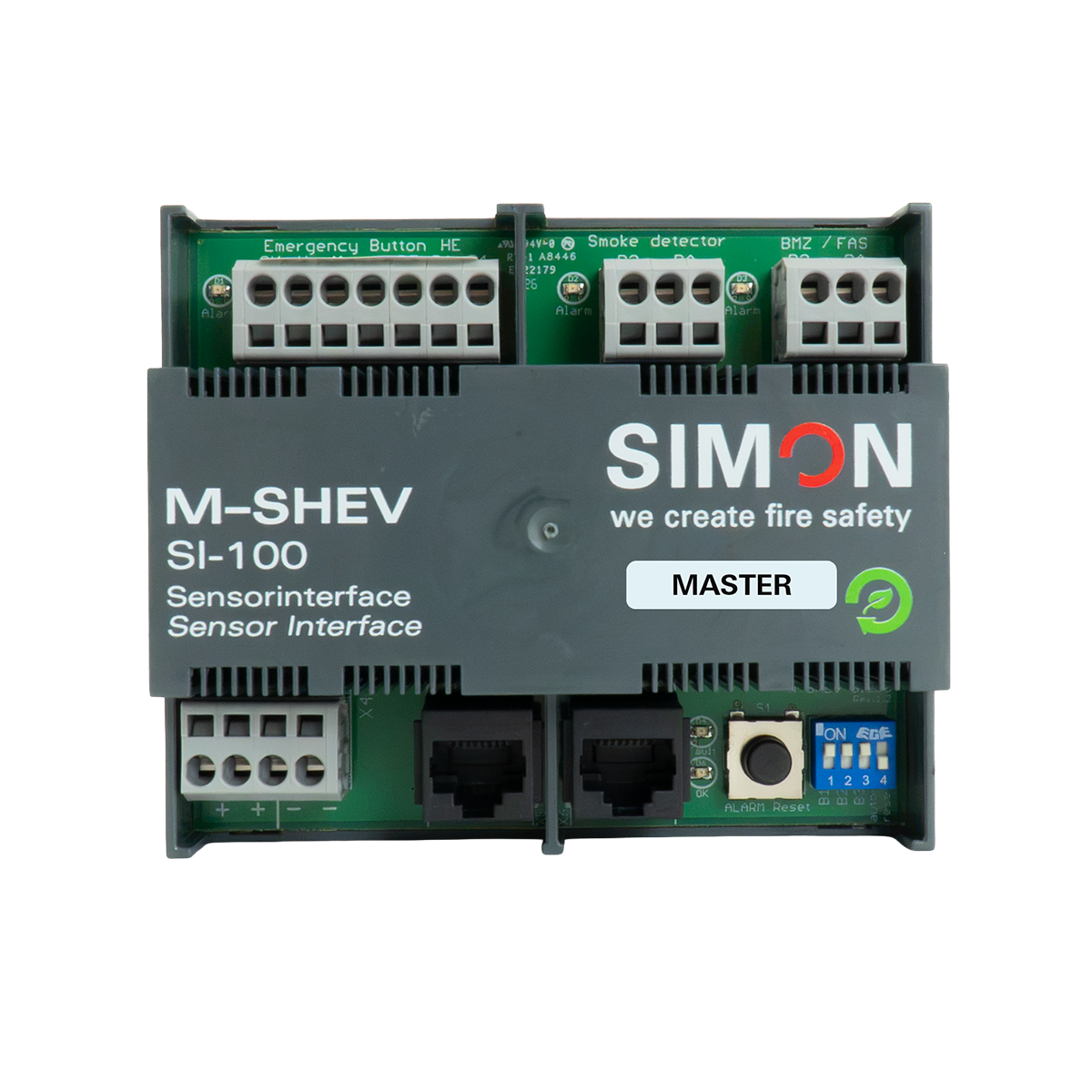

| ST4 3386 | SI-100-MASTER | |
| ST4 3389 | BI-100-KNX | |
| Spare rechargeable batteries for modular control p | ||
| Part no. | Matchcode | |
|---|---|---|
| ST4 10120 | Pb-battery-7Ah | |
| ST4 10121 | pb-battery-12ah | |
| ST4 10122 | pb-battery-17ah | |

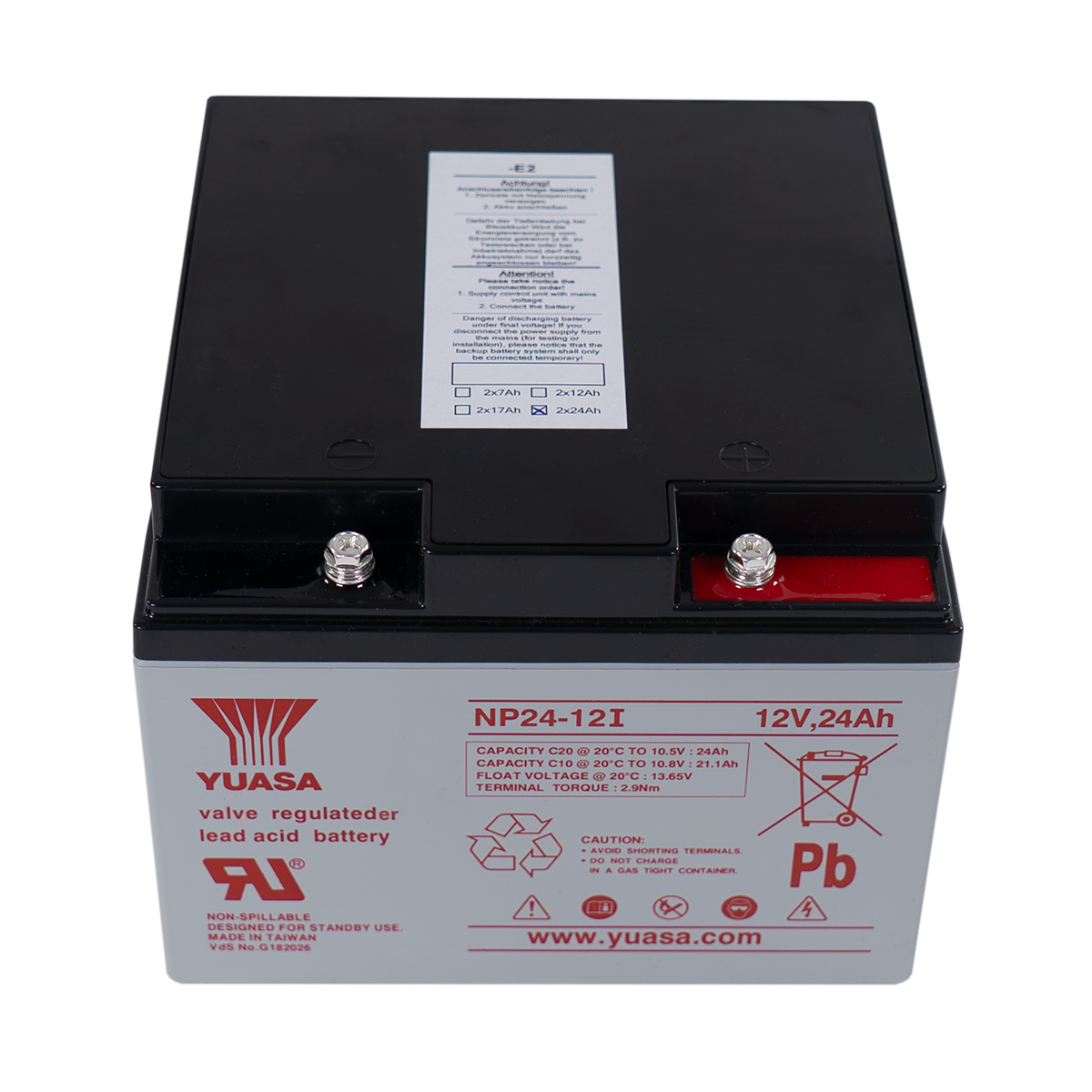

| ST4 10123 | pb-battery-24ah | |
| ST4 10124 | Pb battery 38 Ah | |
| Charging batteries for modular control panels | ||
| Part no. | Matchcode | |
|---|---|---|
| ST4 3361 | Charge electronics, type LB-120 | |

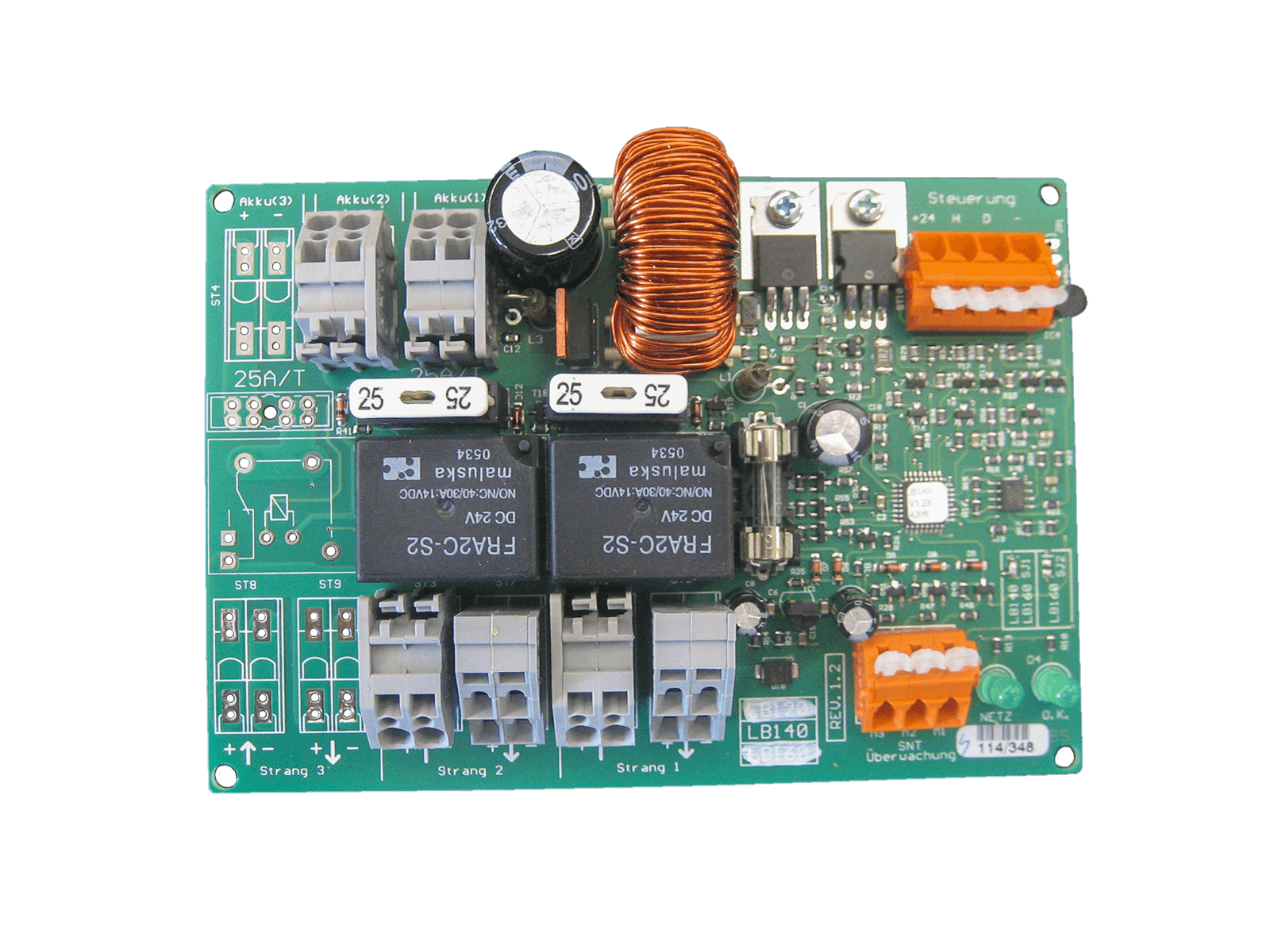

| ST4 3362 | Charge electronics, type LB-140 | |
| ST4 3363 | Charge electronics, type LB-160 | |

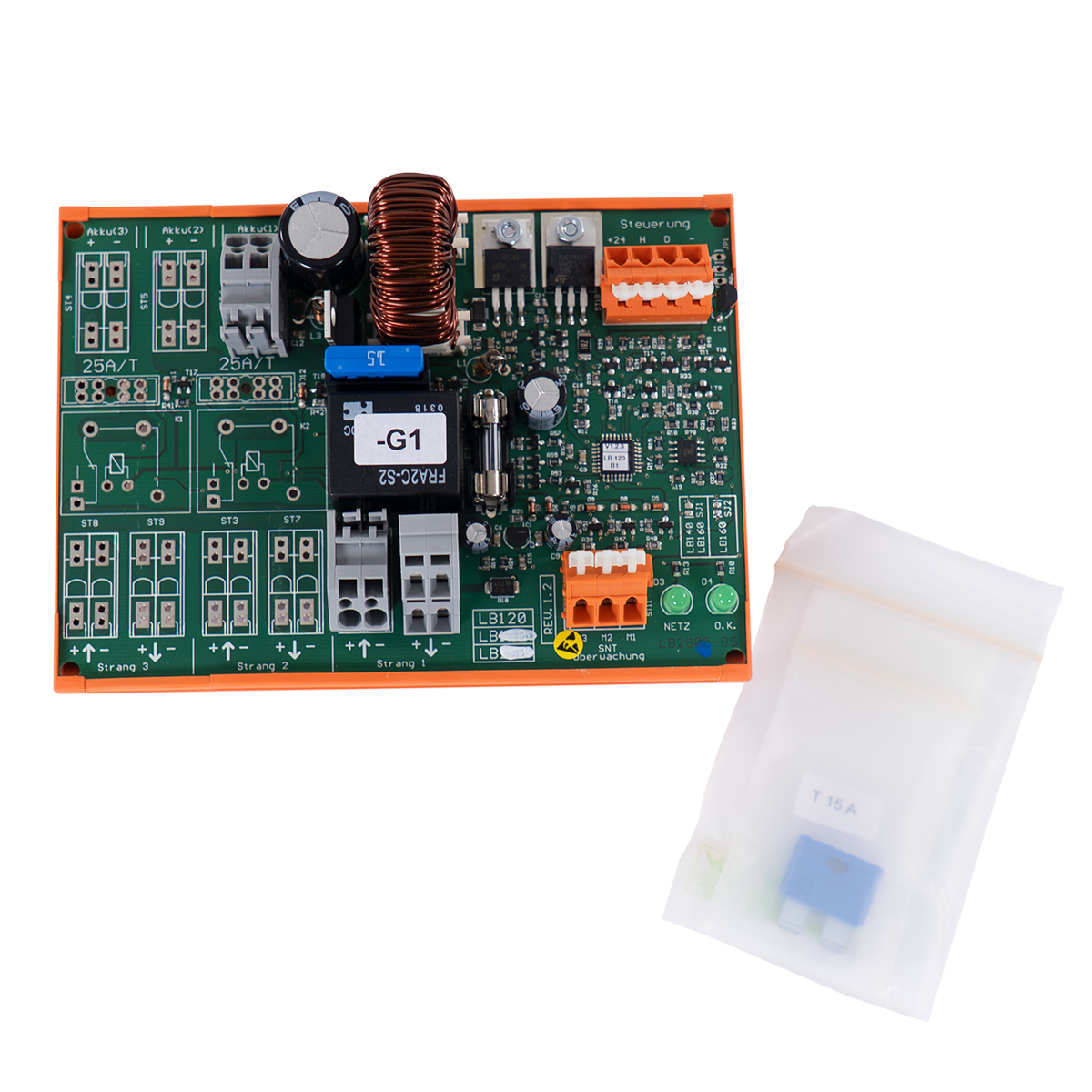

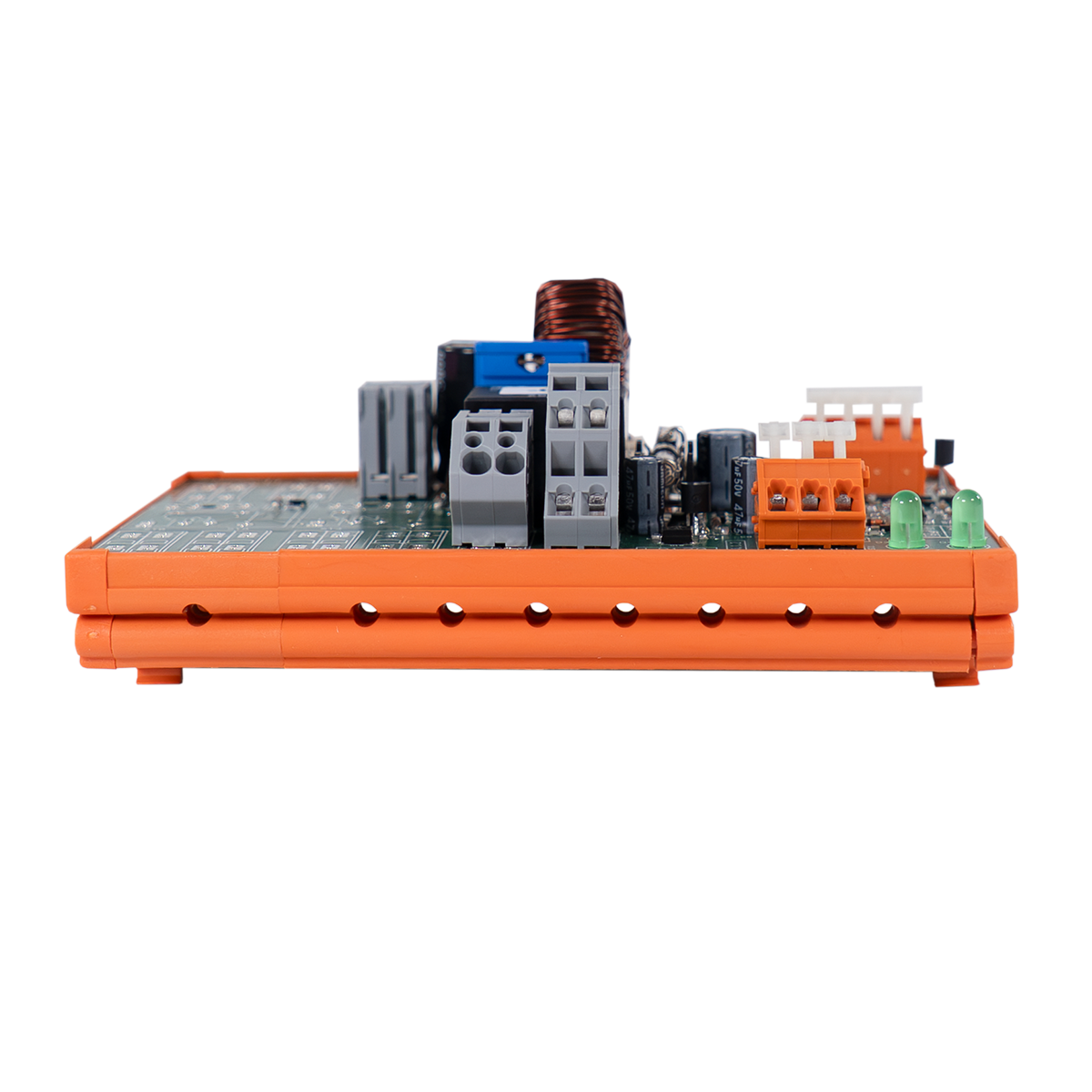

| ST4 3369 | Charge electronics, type LB-120-10 | |
| Housing accessories for modular control panels | ||
| Part no. | Matchcode | |
|---|---|---|
| ST4 3321 | Flange plate 445-130 plastic | |
| ST4 3322 | Flange plate 345-130 plastic | |
| ST4 3323 | Flange plate 545-130 plastic | |
| ST4 33516 | AP-MOUNT | |
 Brochure Control Panels | Brochure Control Panels |
| Brochure M-SHEV control units | Brochure for the modular control panel M-SHEV |
| Brochure M-SHEV_EN | Brochure for the modular control panel M-SHEV (English) |
| Operating manual BI-100 | Operating manual for BUS interface BI-100 including KNX |
| CE-Certificate M-SHEV | Declaration of conformity for the modular control panels M-SHEV-10, M-SHEV-10-AP, M-SHEV-12, M-SHEV-12-AP, M-SHEV-12-AP-ECO, M-SHEV-24-AP-ECO, M-SHEV-24, M-SHEV-48, M-SHEV-XX (cascadable power supply EV-24 / 48 A) |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
