| Input voltage | 24 V DC |
The electrical SHEV-emergency button type HE 080, HE 081, HE 082, HE 086 and HE 087 are used as main or secondary SHEV-button, in accordance with DIN 18232/2 and the LBO, in smoke and heat extraction systems. The heat and smoke extraction button is used to manually control the respective electrical control unit in case of fire and thereby activate the smoke exhaustion.

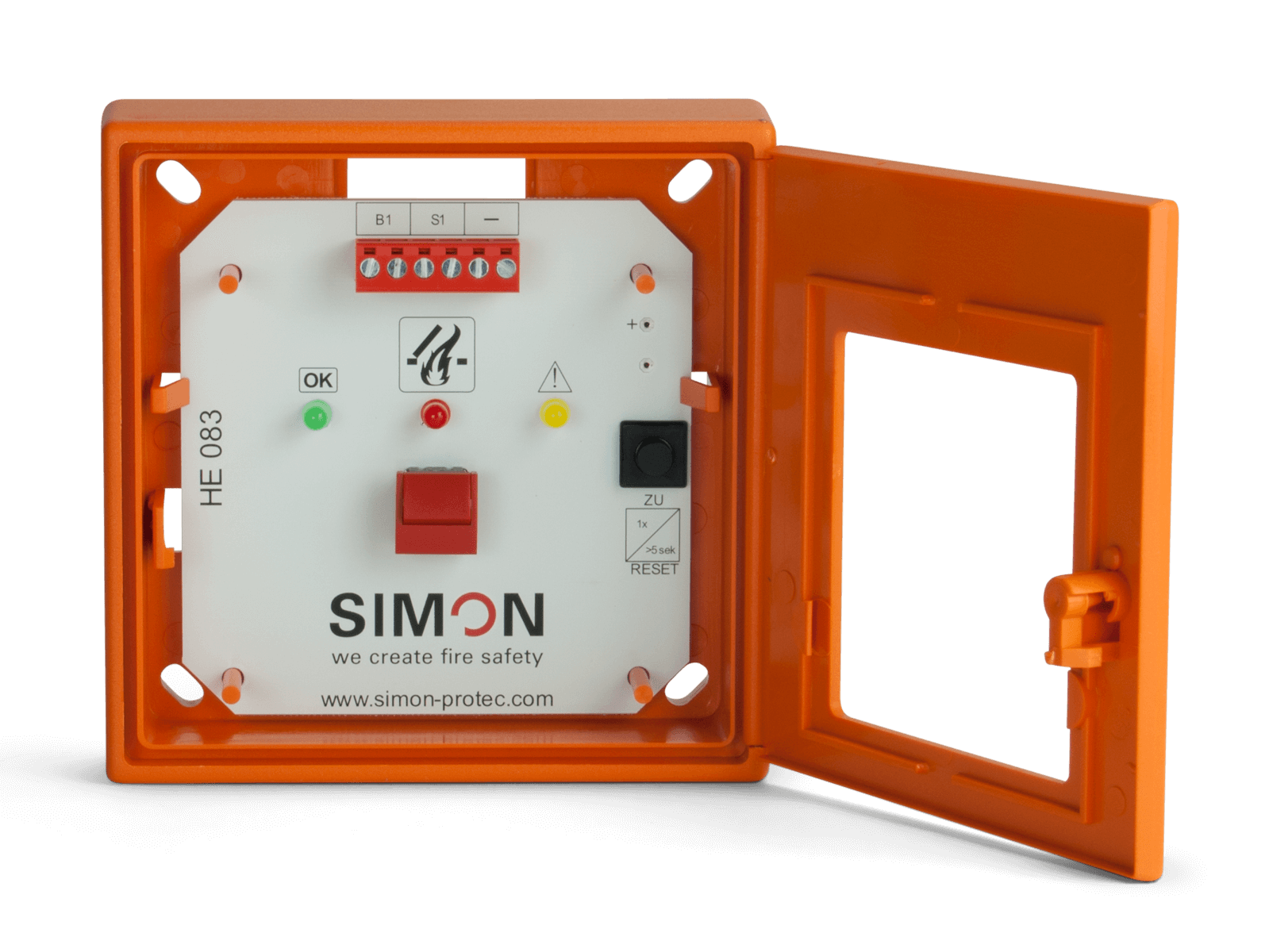

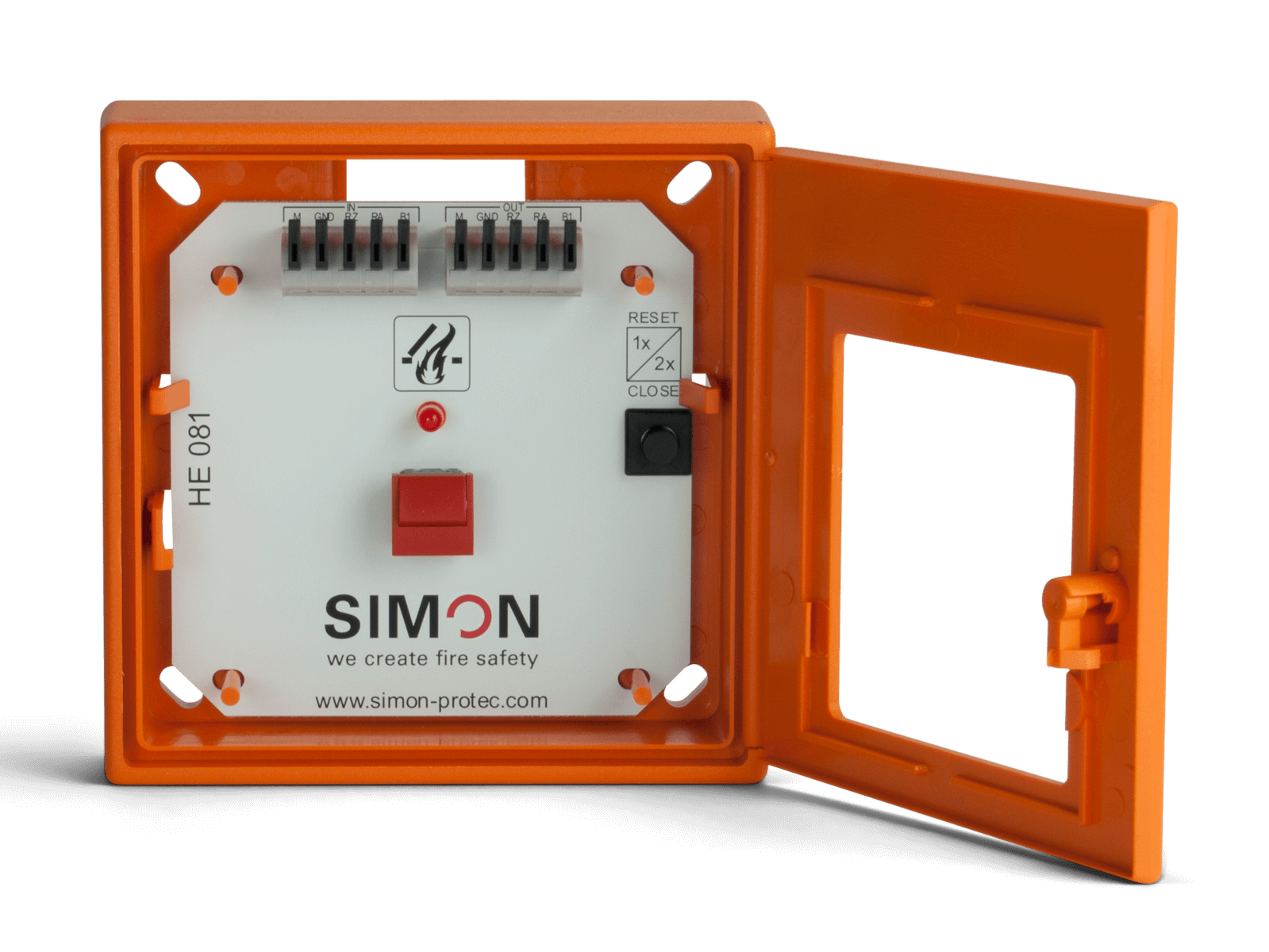

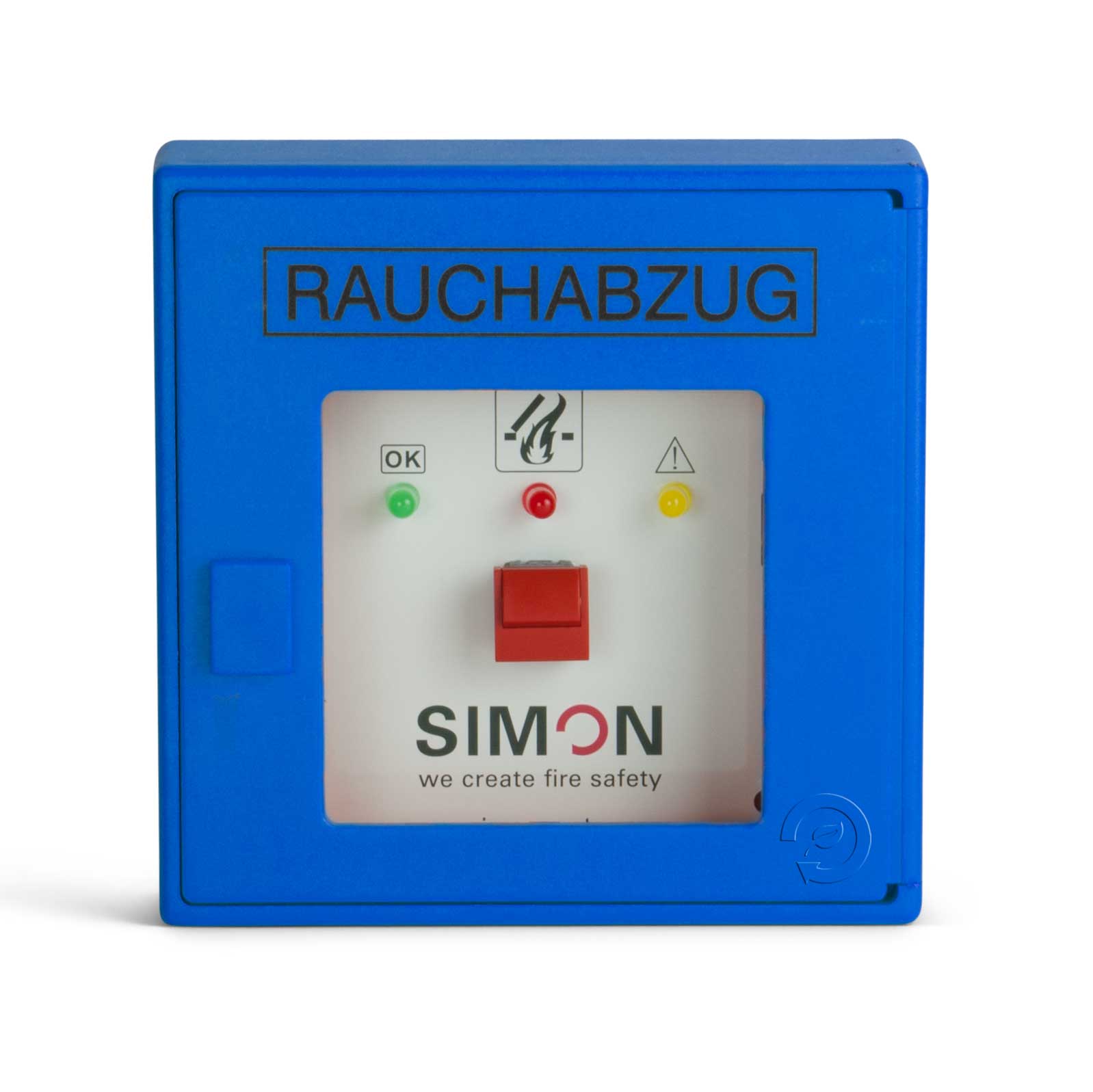

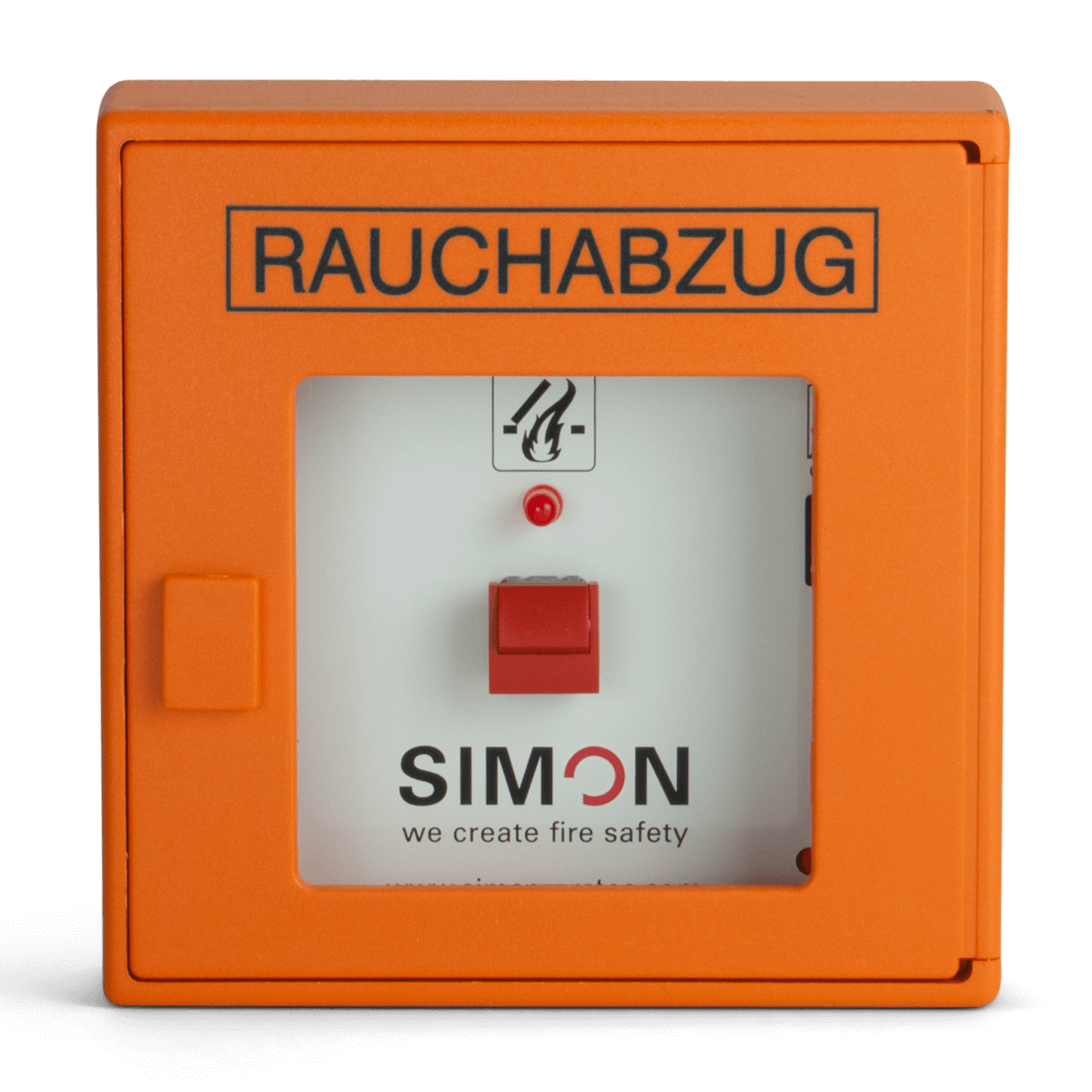

Version HE-080 is supplied with an integrated buzzer, which emits an acoustic signal in the event of an alarm or fault. The signal can be reset with the Mute button. Optionally without buzzer, the main control panel is offered as HE-082 / HE 087 (replaces the HE-075). For additional triggering points of the smoke exhaustion, the secondary SHEV-button HE-081 / HE 086 (one LED: SHE - replaces the HE-076) without buzzer must be used.
Manual control device at a glance:
| Matchcode | Elektrische Handansteuereinrichtung |
| Product name | Emergency Override Switches |
| Features | SHEV |
| Input voltage | 24 V DC |
| Weight | approx. 0,25 kg |
| Mounting way | fitted |
| Housing | surface mounting plastics unit according to DIN 14655/DIN EN 12101/9/125 x 125 x 35 mm optionally installed in a in-wall mounted housing: with revolving door, security glass and key |
| Part no. | Matchcode | |
|---|---|---|
| A3 10035 | HE 080 | |
| A3 10045 | HE 081 | |
| A3 10055 | HE 082 | |
| A3 2001 A | HE 07X/-08X Yellow | |
| A3 2002 A | HE 07X-/08X Blue | |
| A3 2003 A | HE 07X/-08X Grey | |
| A3 2005 A | HE 07X/-08X Orange | |
| E 10019 | DINSCHL |
 Brochure Control Panels | Brochure Control Panels |
| Brochure Emergency override switch | Brochure about the emergency override switch HE-08x |
| Catalogue (web) Smoke & Daily Vent | Catalogue (web) Smoke & Daily Vent |
| Brief instruction HE-083 | Brief instruction for the alarm triggering device |
| Brief instruction HE-08x | Brief instruction for the alarm triggering devices HE080/081/082/086/087 |
| Certificate Declaration of conformity HE-0xx | Declaration of conformity HE-0xx |
| Environmental Product Declaration (EPD) | Environmental Product Declaration (EPD) |
| Safety instructions and warranty conditions | Safety instructions and warranty conditions |
