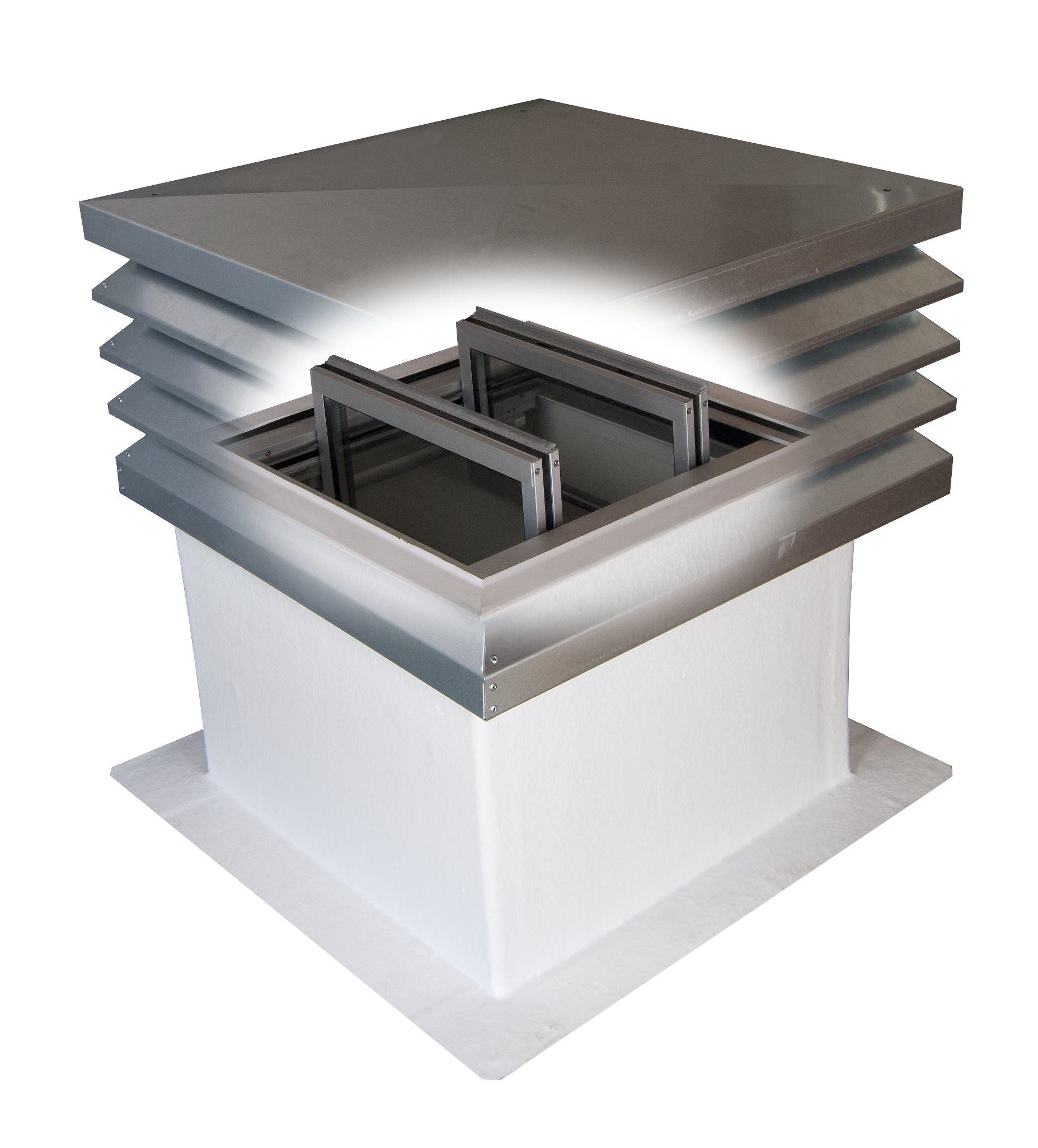

The smoke extraction element SHEV-Flap consists of an integrated louvre window with attached weatherproof louvre hood and a straight, heat-insulated GRP upstand and is independent of wind direction and weather. The smoke extraction element is available in three standard sizes. On request, special sizes are possible.
On request, the element can be equipped with an insect screen. A bird screen is installed by the house. If there is regular passenger traffic below the installation location of the SHEV Flap, the use of special glazing (overhead - LSG) may be required. Please check the installation location with regard to this installation rule and, if necessary, order the SHEV Flap with VSG glazing. The SHEV-Flap can also be opened from the roof after installation. Therefore, it is ideal for closing SHE openings in lift shafts.

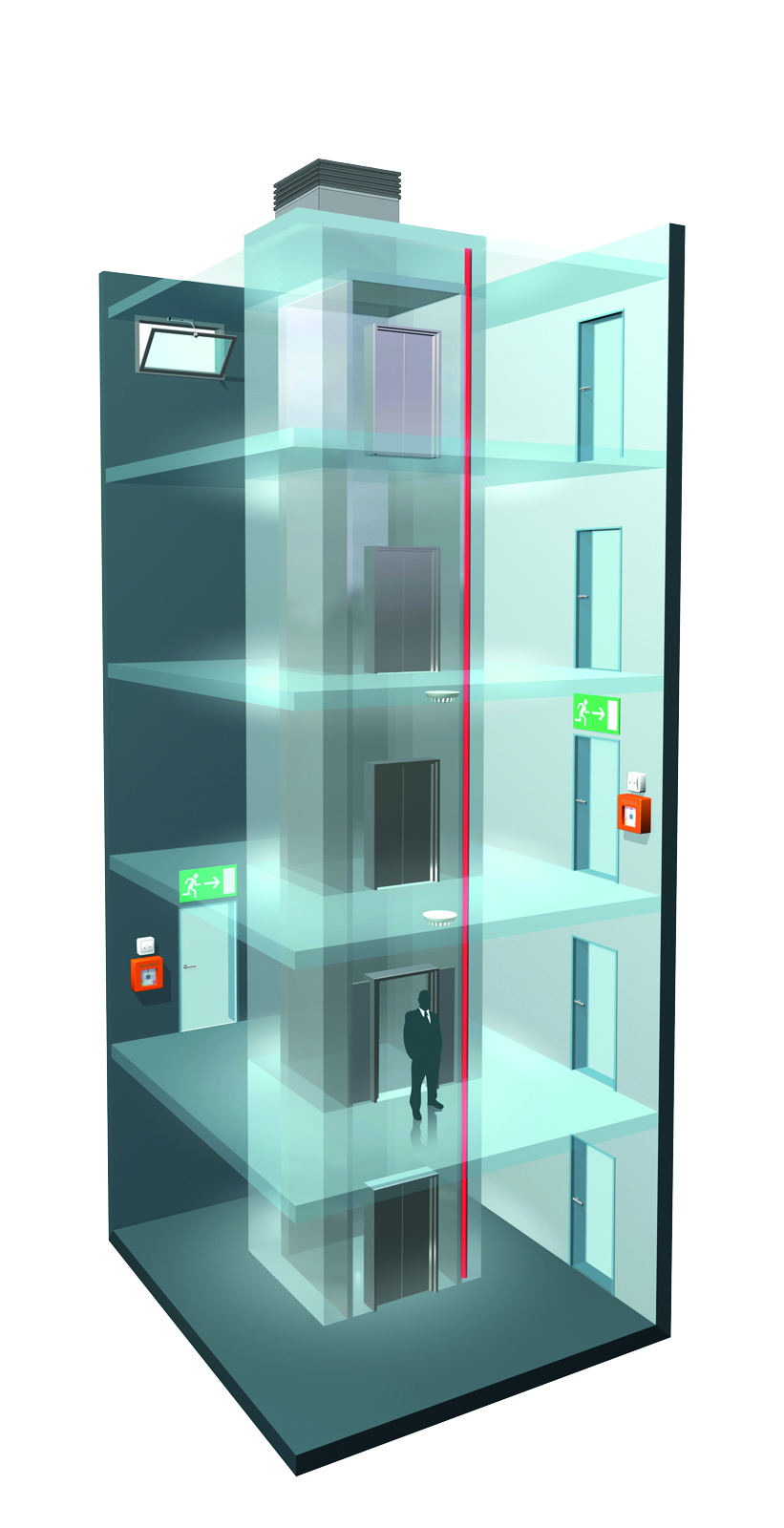

Ideal for lift shaft smoke extraction
The SHEV-Flap can also be opened from the roof after installation. This makes it ideal for closing SHEV openings in lift shafts. The louvre cover also makes the SHEV-Flap watertight, protecting the electrical components from damage by water - a requirement that comparable technology such as rooflight domes cannot fulfil!
SHEV-Flap at a glance:
| Matchcode | SHEV Flap-L |
| Article name | Smoke-extraction flap SHEV Flap-L |
| Part number | M2 1792 |
| Input voltage | 24 V DC |
| Nominal current | 1.0 |
| Weight | 95 |
| Housing length | 1010 |
| Housing width | 1010 |
| Housing height | 830 |
| Inner width | 815 |
| Inner depth | 815 |
| Environment temperature range | -5 °C - 40 °C |
| Part no. | Matchcode | |
|---|---|---|
| A3 2062 | RM 3000 | |
| ST4 3175 | SHEV 3 LIFT |
SHEV-FLAP smoke extraction device, size L
with SHEV- linear actuator with integrated electronic load cut-off
The smoke extraction element SHEV-FLAP is the ideal closure for openings in flat roofs. These are especially openings above elevator shafts, which are intended for natural ventilation and smoke extraction. It can also be used as a relief opening for pressure ventilation systems in stairwells. The SHEV-FLAP consists of a straight, 50 cm high thermally insulated upstand and an integrated, tested NRWG lamella element with attached weather protection lamella hood. During construction, special attention was paid to a clean thermal separation in terms of building physics. The element is available in various standard sizes as well as made to measure. This solution provides a weather-protected opening, which ensures smoke extraction independent of wind direction.
Technical data:
⦁ Geometric cross-section: 0.35 m²
⦁ Upstand internal dimensions: 815 x 815 mm
⦁ Low snow load stability of the camber - SL 10
⦁ No overhead glazing. Laminated safety glass (VSG) available upon request.
Technical data SHEV slit actuator PA-LSL-75/48:
⦁ Power supply: 24 V DC
⦁ Rated current: 1 A
⦁ Stroke: 48 mm
⦁ Force: 750 N
⦁ Housing: Aluminum EV1
⦁ Connection: SICO PLUG with included 6 x 0.5 mm² connection cable (3,000 mm length)
⦁ Configurable via SICO LINK
⦁ Operating cycle: 30% (ON: 3 Min. / OFF: 7 Min.)
⦁ Temperature range: -5°C to 75°C
Manufacturer:
SIMON PROtec Systems GmbH | Medienstraße 8 | D-94036 Passau
Type: SHEV-FLAP-L
Item number: M2 1792
WEEE Reg. No.: DE 97535049
